HDMD LTD.      MACHINES FOR OPTICS

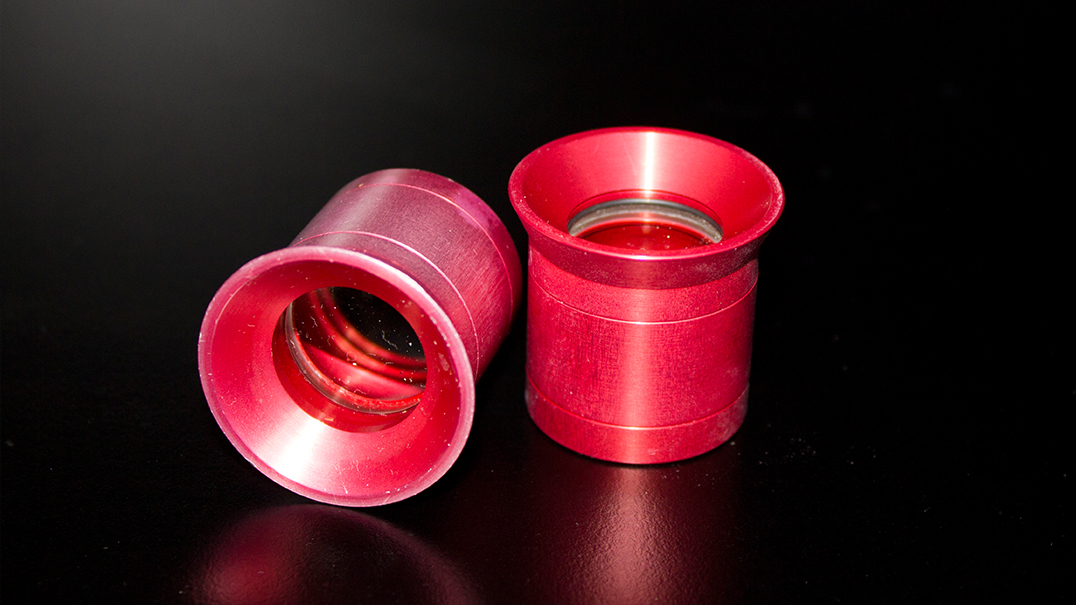

Magnifiers 5x or 10x magnification

Sharp image assured by qualitative optical glass components; Solid and light aluminum housing; AR coated optical components for impressive image; With 5x magnification you can focus easily. With the 10x magnification you can see even finest details of the inspected object.

Technical Data:

Diameter of the lenses: 22,0 mm;

Clear aperture: 20,5 mm.;

Field of view >25,0 mm.;

Working distance 5x: 40,5 mm.;

Working distance 10x: 15,6 mm.;

AR Coating@550 nm, R<1,0%.
